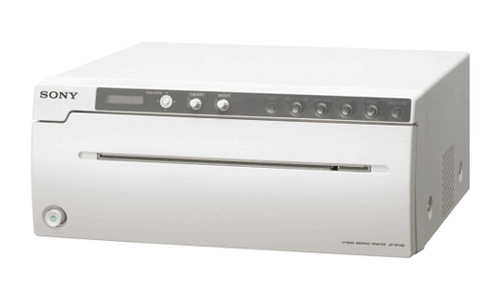

Sony A4 Analog and Digital B/W Printer (UP-971AD)

Sony A4 Analog and Digital B/W Printer (UP-971AD)


Product Description

Fast, high quality black & white printing from both analog and digital imaging inputs onto paper.

The UP-971AD is a compact black and white printer designed for use with both analog and digital radiology imaging systems such as mobile C-arm, ultrasound, cardiac catheterisation laboratory and other compatible medical imaging systems.

Smaller than its predecessor (the UP-970AD), it provides high-quality hard copies of still images captured by the imaging system, that can then be used as reference prints for patient record purposes or referrals. (Please note that images printed from the UP-971AD are not to be used for diagnosis).

Printing options are expanded with a choice of Multi-picture modes for multiple images on a single sheet, plus a panoramic printing capability to produce extra-wide images.

Wireless Printing Capability: By using the optional UPA-WU10 Wireless Print System, you can achieve cable-free connection between the Sony digital printer with 5V USB output port, mobile C-arm and other hospital imaging modalities.



    Accepts both Digital and Analog Video Input Signals
      The UP-971AD can receive digital as well as analogue signals, allowing the printer to support both types of C-arm system. It also can receive signals from two different integrated systems - i.e. analog from a C-arm and digital from an ultrasound system

      More Compact, more Visible
        The UP-971AD has a compact design with dimensions of approximately 316 (W) x 132.5 (H) x 265 (D) mm (12-1/2 x 5-1/4 x 12 inches) - 40mm smaller in depth than its predecessor. At the same time, the size of the LCD display panel is increased, and the control panel features a white LED back light that offers clear visibility regardless of ambient light levels

        Multi-Picture Modes
          As well as printing a single picture, the UP-971AD also offers a choice of two, four and six-way split printing of images on a single sheet when connected to an analogue video signal. The "Multi" button on the front panel allows quick switching between "Single-picture" and "Multi-picture" modes. With digital input signals, the printer can provide two or four split pictures on one sheet (NB: Multi button does not function with digital input)

          Quick Guide Print
            Quick instruction guides for different print operations can be selected, via the front control panel, and printed out for your easy reference so that you do not need to refer to the user manual. English only

            Compliance with Medical Safety Standards
              This product is distributed to the US and EU as a medical device and satisfies product safety standards (e.g. IEC 60601-1)

              High Quality Printing
                Using Sony's direct thermal printing technology, the UP-971AD delivers photo-quality black & white prints with a high resolution of approximately 325 dpi

                High Speed Printing
                  In standard mode, the UP-971AD can deliver a print in approximately 8 seconds

                  Enhanced Operability
                    All function keys of the UP-971AD are located on the front panel, allowing easy setup and operation when the printer is installed in a medical cart. In addition, separate knobs on the front panel allow easy adjustment of both contrast and brightness and an auto lock function that prevents inadvertent alteration of settings

                    Panoramic Printing
                      When connected to a digital signal, the UP-971AD can produce panoramic prints up to a maximum of 600mm long

                      Visual Print Quality Control
                        Optimum print settings can be compared and chosen from a "collage" print of nine pictures with different values for brightness, contrast, tone or sharpness

                        Wireless Printing Capability*
                          The optional UPA-WU10 Wireless Print System allows cable-free connection between the UP-971AD and surgical endoscopes, ultrasound systems, and other hospital imaging modalities. This is ideal for busy clinical environments, where modalities are constantly being moved between different OR and treatment rooms. This all-in-one wireless printing solution also resolves the problem of limited space on medical carts, allowing connection between a medical imaging modality and an "off-cart" printer without requiring a lengthy USB cable. * This function is available to Sony digital printers with USB 5V type A Output port
